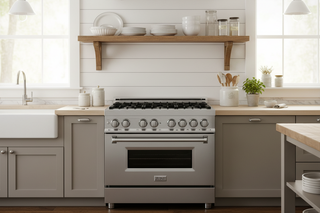

This is the ZLINE 36" Stainless 4.6 cu.ft. 6 Gas Burner/Electric Oven Range (RA36). At a glance: 36" wide, 67,500 BTU total burner output, 4.6 cu. ft. oven, 1-year manufacturer warranty. Highlights: Legacy Series; Dual Fuel Cooking; Italian Sealed Burners.
36"wide
67,500total BTU
4.6cu. ft. oven
1-yearwarranty
Why it stands out
-
Legacy Series – The Legacy Professional Range Series is the base of ZLINE's family-focused effort to offer attainable luxury.
-
Dual Fuel Cooking – Gas burners on top and an electric convection oven below give even heat.
-
Italian Sealed Burners – The gas cooktop has 6 hand-cast burners delivering 1,000 to 18,000 BTUs.
-
Landscape Oven Window – A wide landscape door window gives plenty of room to watch food as it cooks.
-
4.6 cu. ft. Oven – Pans as wide as 27 in. fit inside the oven.
-
Oven Insulation – Triple-pane glass with an aluminum mesh seal holds heat and keeps temperatures steady.
-
Adjustable Height – Adjustable legs set total range height between 36 and 38.5 inches.
More features
-
304 Stainless and Cast Iron – High-grade 304 stainless steel and cast iron grates that go beyond industry standards.
-
StayPut Hinges – Hinges carry the oven door's full weight for added safety and convenience.
-
Electrical Requirements – Needs a dedicated 15-amp, 240V, 60Hz circuit, connected through a 4-wire NEMA 14-50 plug.
-
Ball-Bearing Racks – Two ball-bearing oven racks slide smoothly for handling larger dishes.
-
Dual Oven Lights – Two halogen lights come on from a switch on the front control panel.
-
Easy Cleaning – The hand-finished, one-piece porcelain cooktop is simple to clean and maintain.
-
LP Conversion Kit – Includes a kit that changes the burners from natural gas to LP; a professional must perform the conversion.
-
Lifetime Burner Warranty – Limited lifetime coverage on ZLINE Italian burners: replacement burners and caps, plus parts and labor for spark tips, if defective in materials or workmanship.
-
Manufacturer Warranty – 1-year parts and service warranty.
Key specifications
| Product Depth (in.) |
27.50 |
| Product Width (in.) |
35.75 |
| Product Height (in.) |
36.13 |
| Oven Interior Dimensions (in) |
24.875 in. W x 17.75 in. D x 16 in. H |
| Depth With Door(s) Open 90 Degrees (in.) |
41.8 |
| Range Size (Width) |
36 in. |
| Appliance Category |
Dual Fuel Range |
| Color/ Finish Family |
Stainless Steel |
| Back Left Burner BTU |
12500 |
| Back Middle Burner BTU |
10000 |
| Back Right Burner BTU |
4500 |
| Front Left Burner BTU |
18000 |
| Front Middle Burner BTU |
10000 |
| Front Right Burner BTU |
12500 |
| Total BTUs |
67500 |
| Cooktop Features |
(6) Burners with Porcelain Cook Top with electronic spark ignition for all burners |
| Control Type |
Manual Front Control |
| Capacity of Oven (cu. ft.) |
4.6 |
| Product Weight (lb.) |
253 |
| Fuel Type |
Convection Electric Oven- Gas Cooktop |
| Oven Features |
Manual Clean - Convection Electric - 4.6 cu. ft. deep oven - Triple Glass Window - Dual Lighting - Professional Aluminum Mesh Seal |
| Voltage |
240V |
| Frequency |
60 Hz |
| Amps |
15A |
| Convection Fan |
Yes |
| Certifications and Listings |
CSA Listed |
| Warranty |
1 year parts and service, limited lifetime warranty on burners |
Good to know
- Also available in 36"(RA30) and 48"(RA48).
- Also available in Gas top and Gas Stove 30"(RG30), 36"(RG36).
- Gas and Propane LP - Shipped for use with natural gas and has an LP conversion kit for propane use included.
- Requires a minimum of 220V-240V/60HZ/30A.
Delivery
Most ZLINE orders ship within 5–8 business days — call (800) 604-1380 Ext. 2 to confirm stock and lead time. It ships by freight to your door; the carrier calls ahead to book a delivery window and a signature is required on delivery. Free shipping, our 30-day return policy and price matching apply.
Questions customers ask
What electrical hookup does it need?
A dedicated 240V circuit rated 15 A, NEMA 14-50 plug. Have your electrician confirm the circuit before delivery.Can it run on propane (LP)?
Yes. An LP conversion kit is included; the conversion must be done by a licensed professional.What warranty does it carry?
1 year parts and service, limited lifetime warranty on burners. Warranty is provided by ZLINE.
