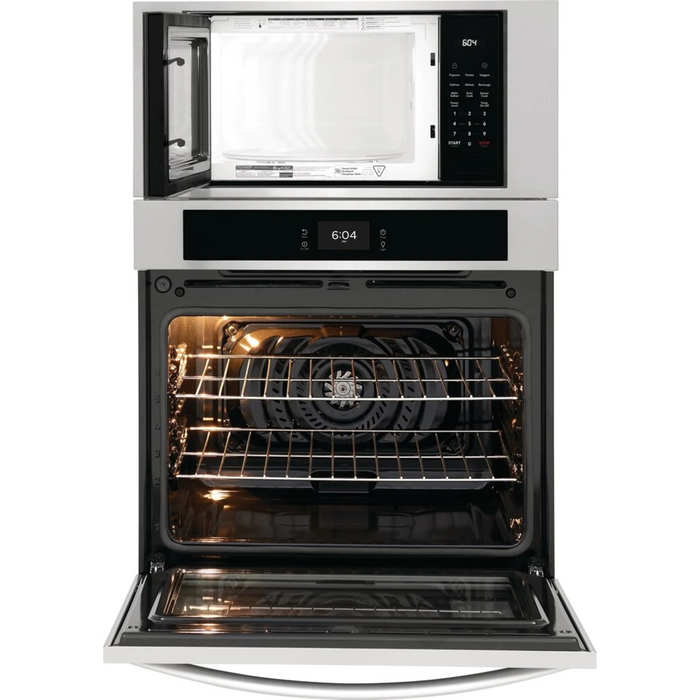

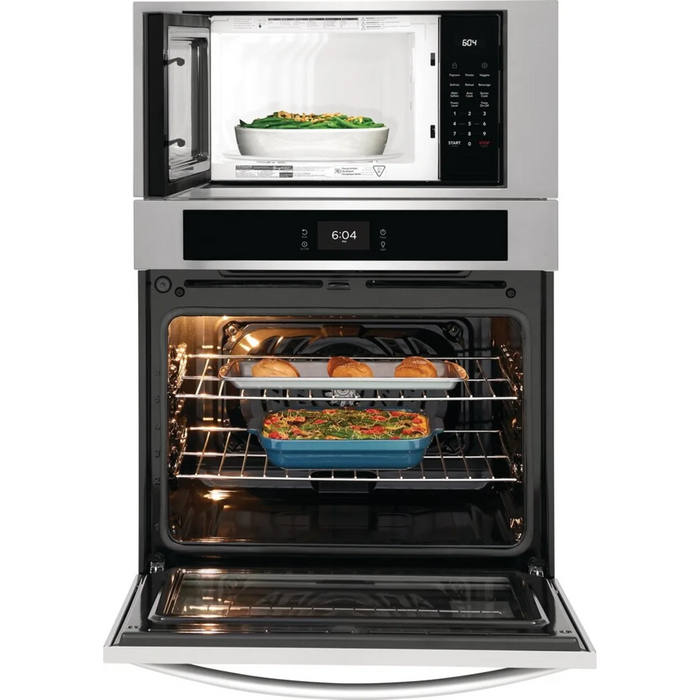

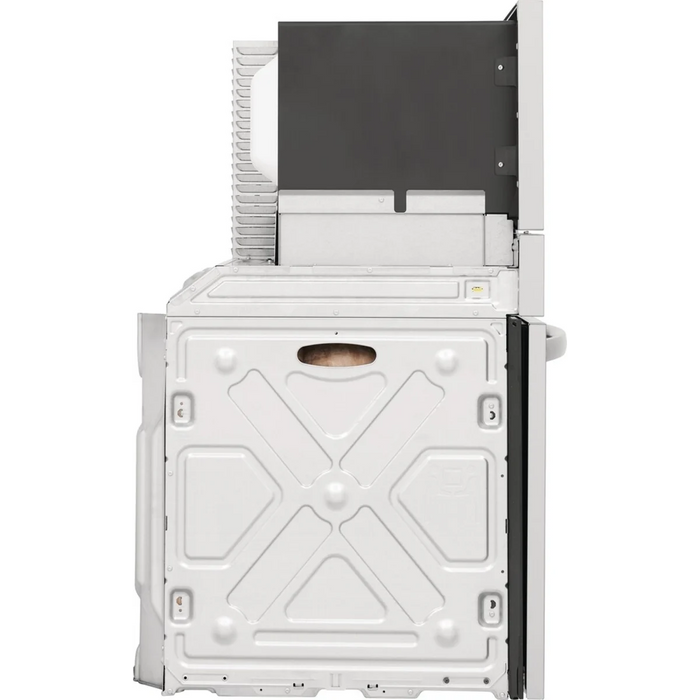

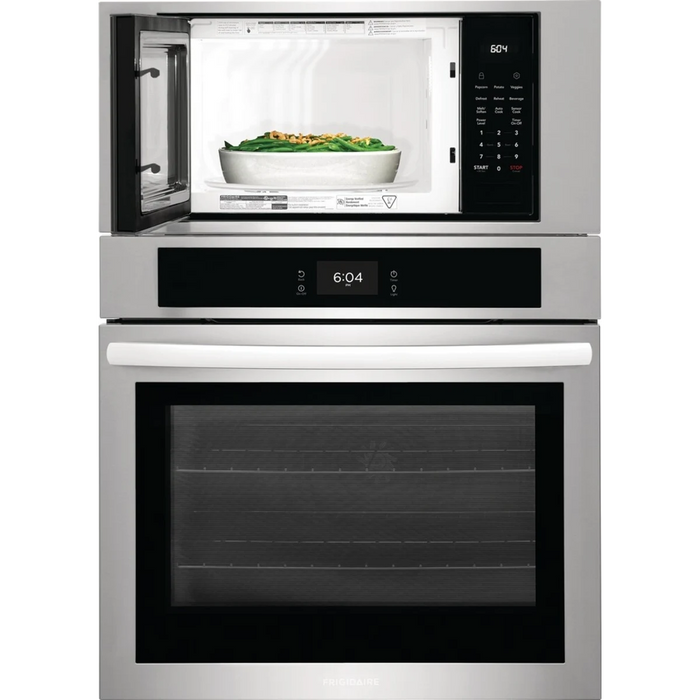

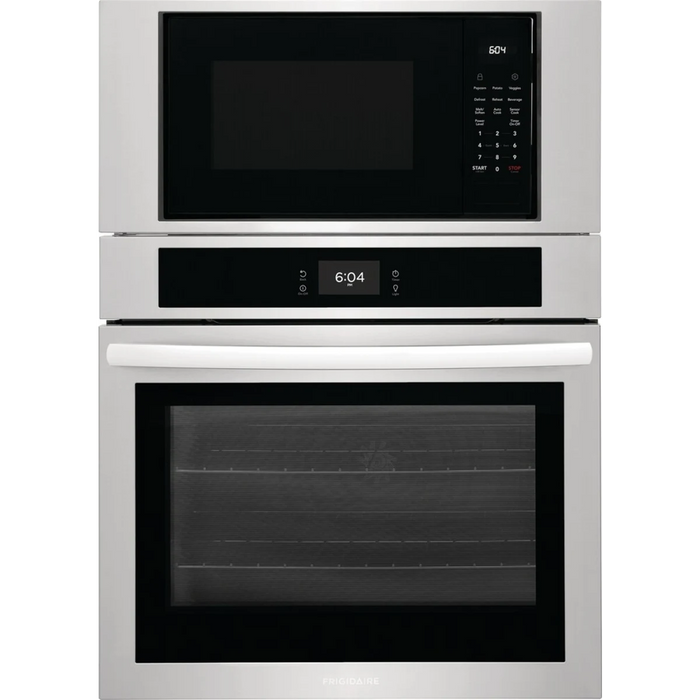

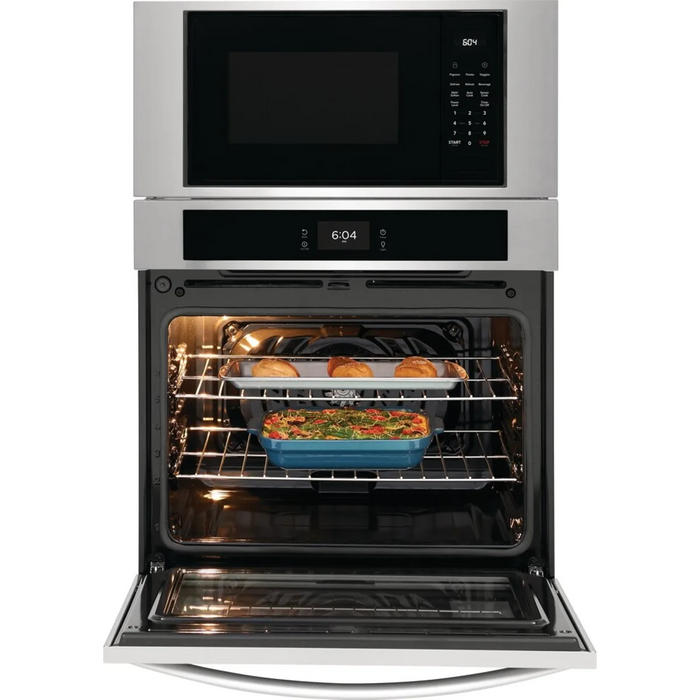

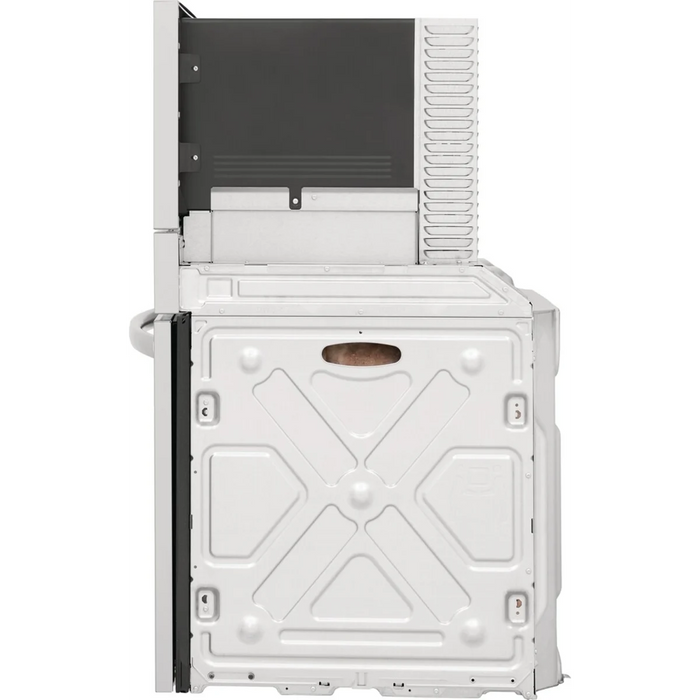

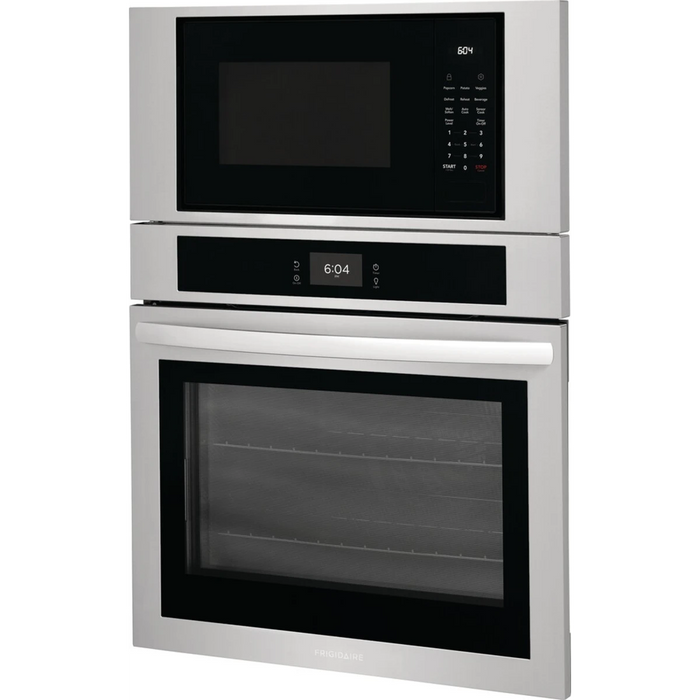

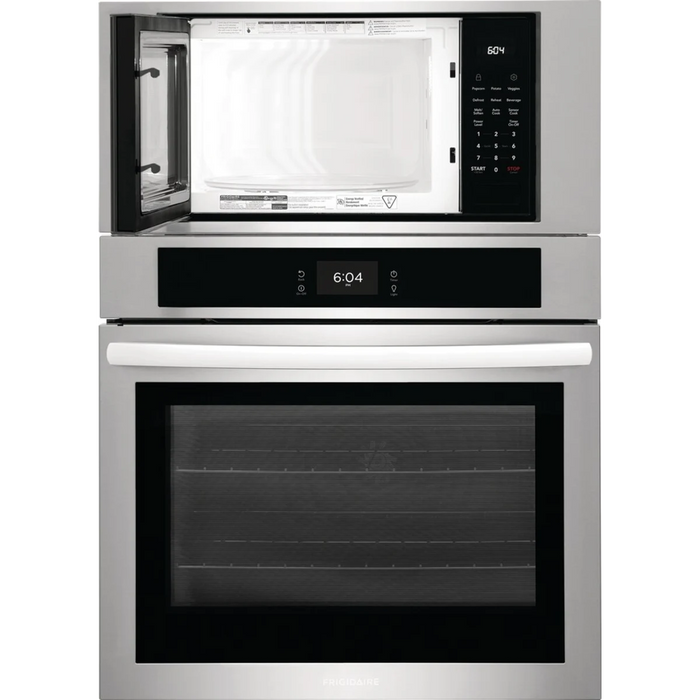

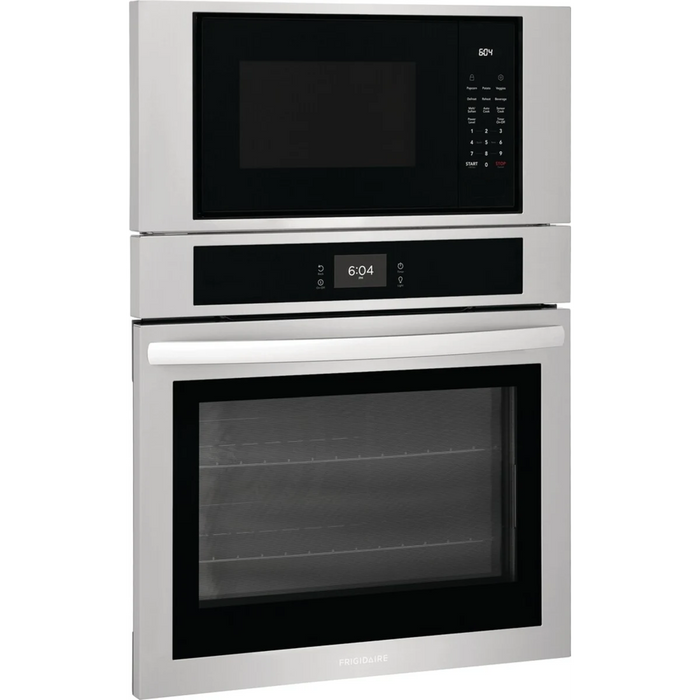

Frigidaire 30" Combination Electric Wall Oven and Microwave FCWM3027AS
Receive the product within 3-5 business days
30 Inch Combination Electric Wall Oven with 5.3 Cu. Ft. Capacity
Get faster, more even multi-rack baking with the Frigidaire 30" Electric Combination Wall Oven, featuring a powerful convection fan that evenly circulates hot air throughout the oven. Your oven cleans itself - so you don't have to. Self-clean options are available in 2, 3, and 4-hour cycles. With additional features like a Premium Touch Screen Control Panel, Customizable Broil, and a Convenient Cook Time Setting, this Frigidaire combination wall oven will meet all your cooking needs and more.
Features
5.3 Cu. Ft. Capacity
- Cook more at once with Frigidaire's extra-large, 5.3 cu. ft. capacity oven

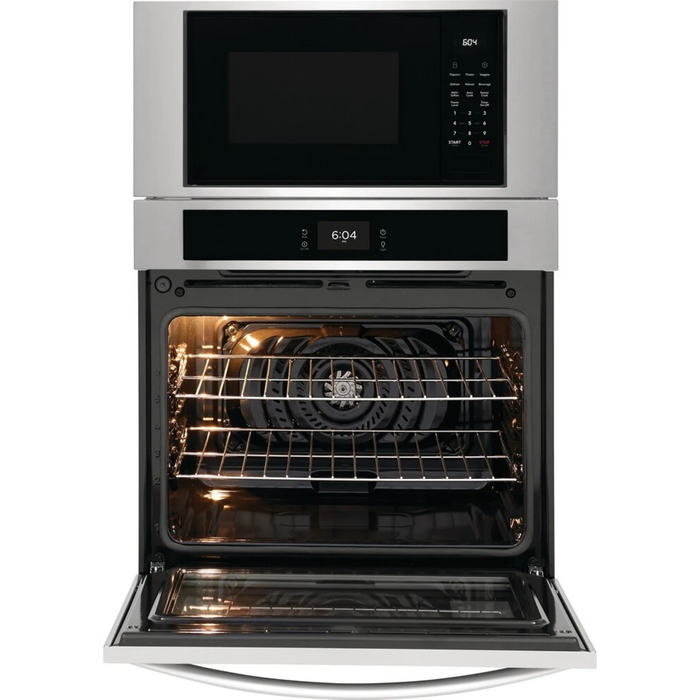

Fan Convection
- It allows you to bake quicker and more evenly across several racks
Self Clean
- With Self Clean, your oven cleans itself so you don't have to; available in convenient 2, 3, and 4-hour cycles

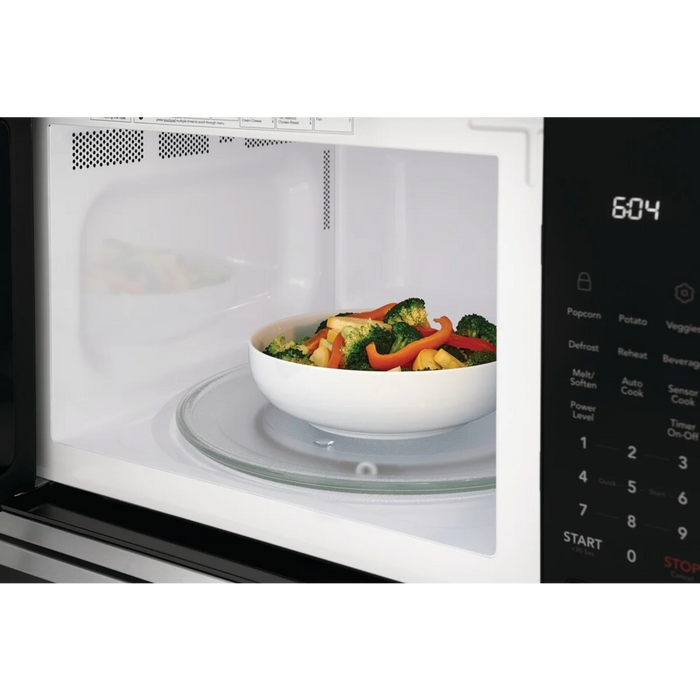

Sensor Cook
- Microwave sensors detect and automatically adjust power levels and cooking times for a variety of items, providing great-tasting results every time
Customizable Broil
- Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees

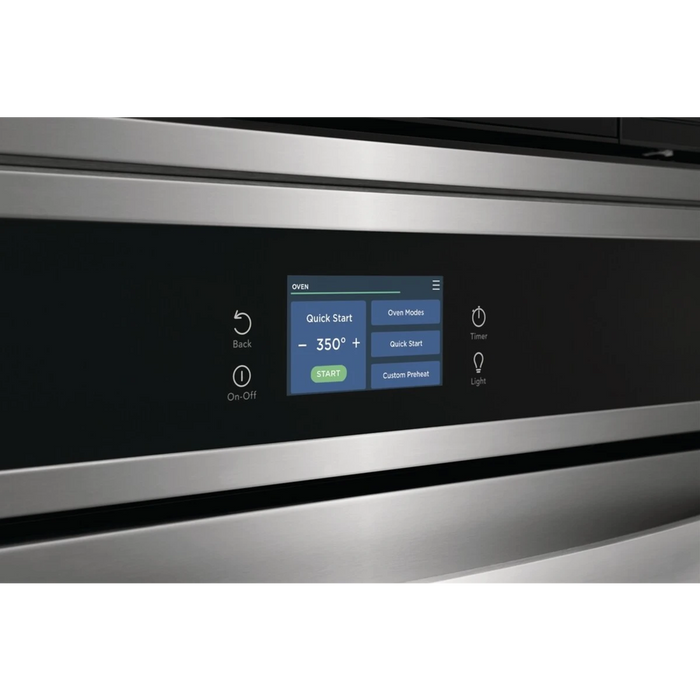

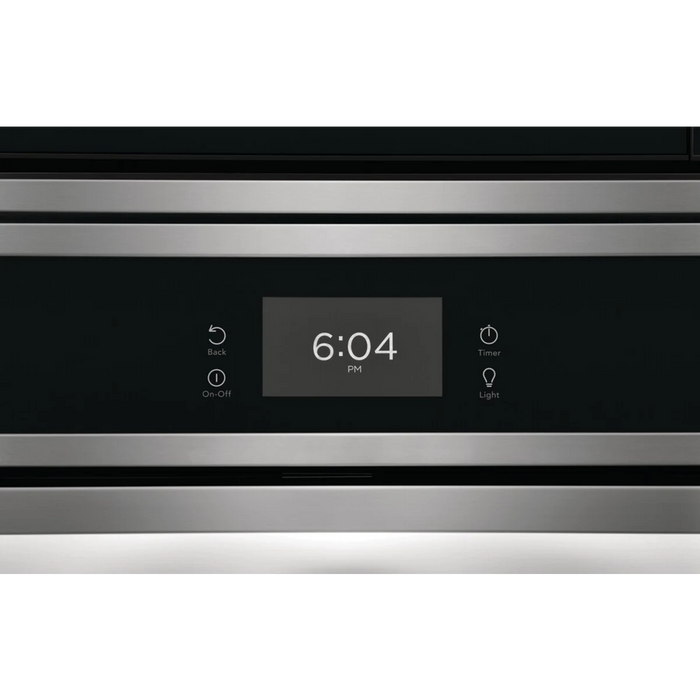

Touch Screen Control Panel
- Features a responsive 4.3 inch, full color, capacitive touch digital oven control panel
Microwave Capacity
Additional Specifications
SPECIFICATIONS:
| Accessories |
| Optional Trim Kit Part Number |
WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK |
| Controls |
| Control Lock |
Yes |
| Sabbath Mode |
Yes |
| Cooking Controls |
| Bake |
Yes |
| Bake Time |
Yes |
| Broil |
Yes |
| Cancel |
Yes |
| Clock |
Yes |
| Convection Bake |
Yes |
| Cook Time |
Yes |
| Delay Start |
Yes |
| Kitchen Timer |
Yes |
| Light |
Yes |
| Off |
Yes |
| Oven Light |
Yes |
| Preheat |
Yes |
| Self Clean |
Yes |
| Start |
Yes |
| Temperature Display |
Yes |
| Timer On / Off |
Yes |
| Cooking Controls Function |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature |
Yes |
| Program Fahrenheit or Celsius |
Yes |
| Silent Control Panel |
Yes |
| Dimensions and Volume |
| Depth With Door 90° Open |
48 3/16" |
| Depth With Handle |
27 3/5" |
| Cutout Depth |
23 5/8" |
| Oven Interior Height |
18 1/8" |
| Oven Interior Width |
25 1/5" |
| Oven Interior Depth |
19 7/8" |
| Microwave Interior Height |
10 1/2" |
| Microwave Interior Width |
17 3/8" |
| Microwave Interior Depth |
18 5/8" |
| Minimum Cutout Height |
41 1/4" |
| Minimum Cutout Width |
28 1/2" |
| Maximum Cutout Height |
42 1/8" |
| Maximum Cutout Width |
28 3/4" |
| Microwave Capacity |
1.6 Cu. Ft. |
| Oven Capacity |
5.3 Cu. Ft. |
| Display |
| Display Interface Color |
White |
| Display Light Color |
White |
| Display Type |
Membrane |
| Electrical Specifications |
| Amps @ 240 Volts |
40 Amps |
| Connected Load @ 240V |
7.9 kW |
| Minimum Circuit Required |
40 Amps |
| Voltage Rating |
240 V |
| General Specifications |
| Frigidaire Fit Promise |
Yes |
| Product Weight |
275 lbs |
| Prop 65 Label |
Yes |
| Warranty - Labor |
1 Year |
| Warranty - Parts |
1 Year |
| AB-1200 |
Information available at frigidaire.com/en/ab1200 |
| Installation |
| Power Supply Connection Location |
Top Left |
| Internal Specifications |
| Interior Color |
White |
| Interior Light Quantity |
1 |
| Interior Light Type |
Halogen |
| Interior Light Wattage |
25 Watts |
| Rack |
Yes |
| Turntable Diameter |
13 1/2" |
| Turntable Material |
Glass |

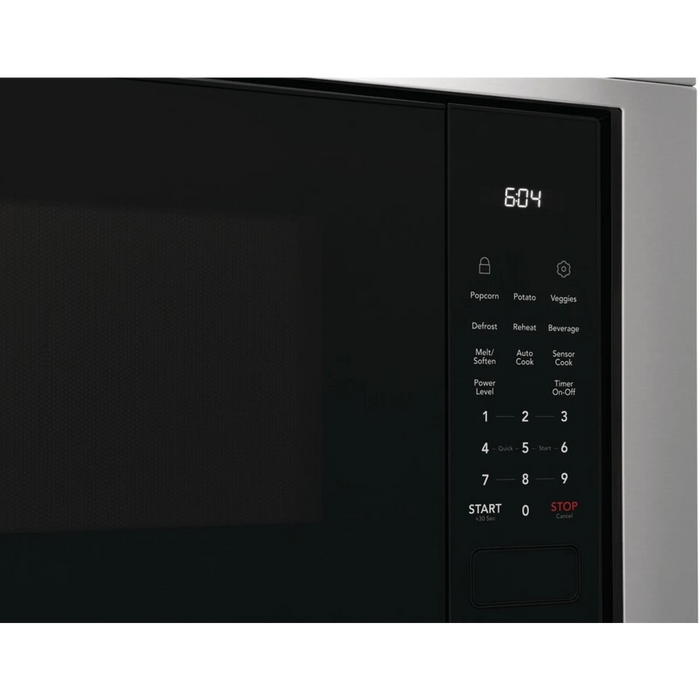

| Microwave Control Features |
| + 30 Seconds |
Yes |
| Microwave Cooking |
| Microwave Cooking Power |
1100 Watts |
| Auto Cook |
Yes |
| Beverage |
Yes |
| Defrost |
Yes |
| Melt / Soften |
Yes |
| Popcorn |
Yes |
| Potato |
Yes |
| Reheat |
Yes |
| Sensor Cooking |
Yes |
| Veggies |
Yes |
| Oven |
| Bake Element |
2600 Watts |
| Bake Element Pass |
4 |
| Bake Element Type |
Hidden |
| Broil Element |
4000 Watts |
| Broil Element Pass |
6 |
| Cleaning System |
Yes |
| Convection |
Yes |
| Convection Type |
Fan |
| Number of Convection Fans |
1 |
| Number of Rack Positions |
6 |
| Oven Interior Color |
Midnight Black |
| Oven Light Quantity |
1 |
| Oven Light Type |
Halogen |
| Oven Light Watts |
40 Watts |
| Rack Position Type |
Embossed |
| Rack Type 1 |
Flat |
| Rack Type 1 Quantity |
2 |
| Safety Certifications and Approvals |
| CSA Listed |
Yes |
| RoHS |
Yes |
| Star-K Certification |
Yes |
| UL Listed |
Yes |
