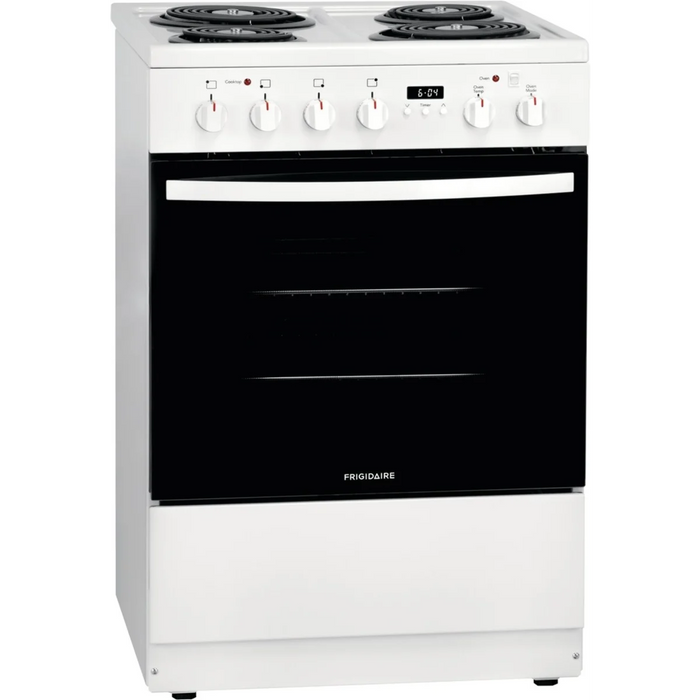

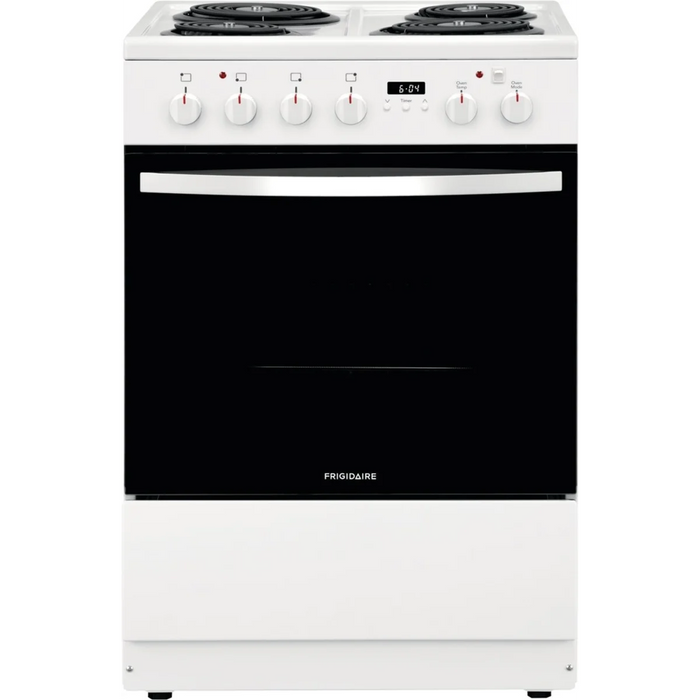

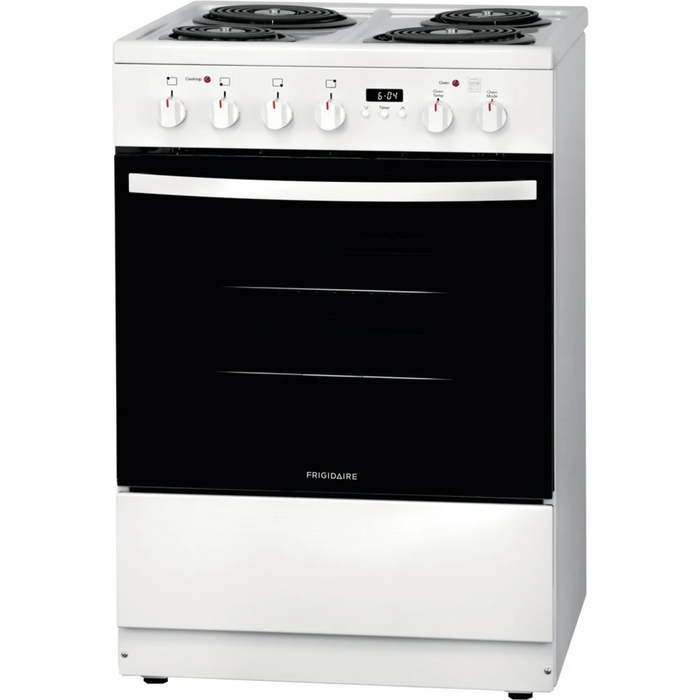

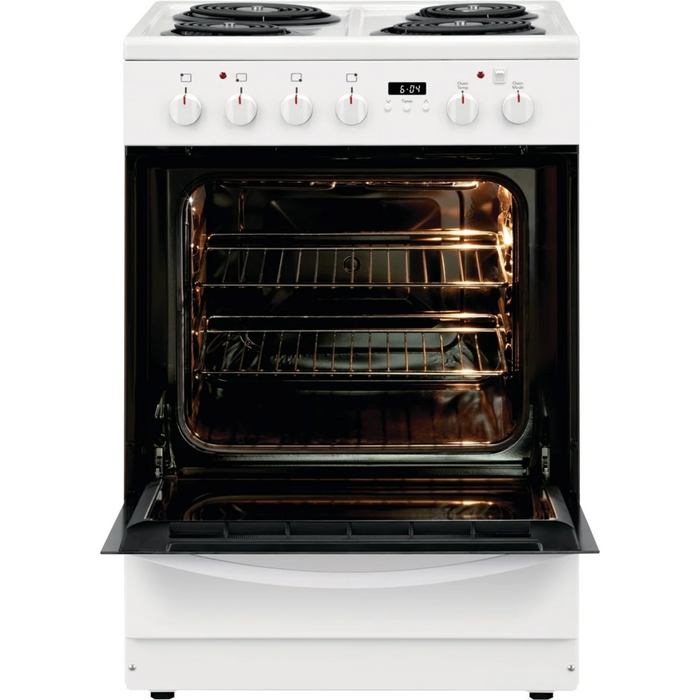

Frigidaire 24" Freestanding Electric Range FFEH2422UW
Receive the product within 3-5 business days
24 Inch Freestanding Electric Range with 4 Coil Elements
This 24" electric range is compact in design, but not in capacity - oven can easily fit a 10 lb. turkey. A convenient storage drawer offers extra space to store your cookware. Keeping the bottom of your oven clean is easier with a hidden heating element. The stylish knobs are color-coordinated to match the finish of the range. When properly installed, this model is A.D.A.-qualified based on the United States Access Board's A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice's 2010 A.D.A. Standards for Accessible Design.
Features

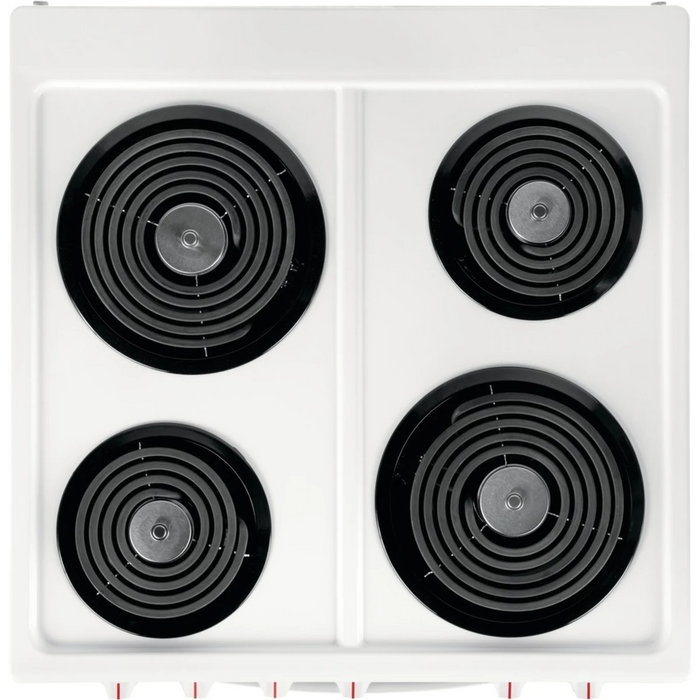

4 Coil Elements
- Slabtop coil with porcelain bowls offers 1500-2400W of power to meet different cooking requirements.
1.9 Cu. Ft. Capacity Oven
- Accommodates multiple courses simultaneously and lets you cook for a larger group in less time.
Storage Drawer
- A convenient storage drawer offers extra space to store your cookware.
Hidden Bake Element
- Keeping the bottom of your oven clean is easier with a hidden heating element

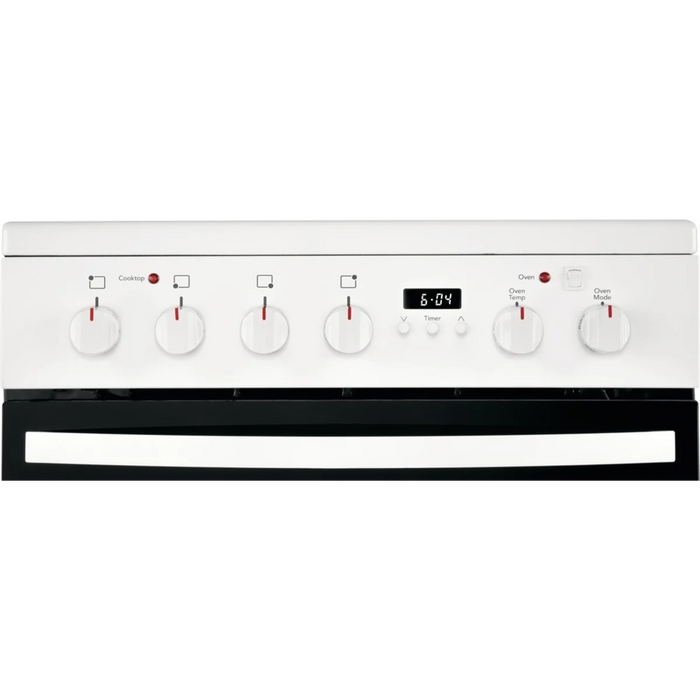

Color-Coordinated Knobs
- Stylish knobs that match the finish of the range.
Compact Design

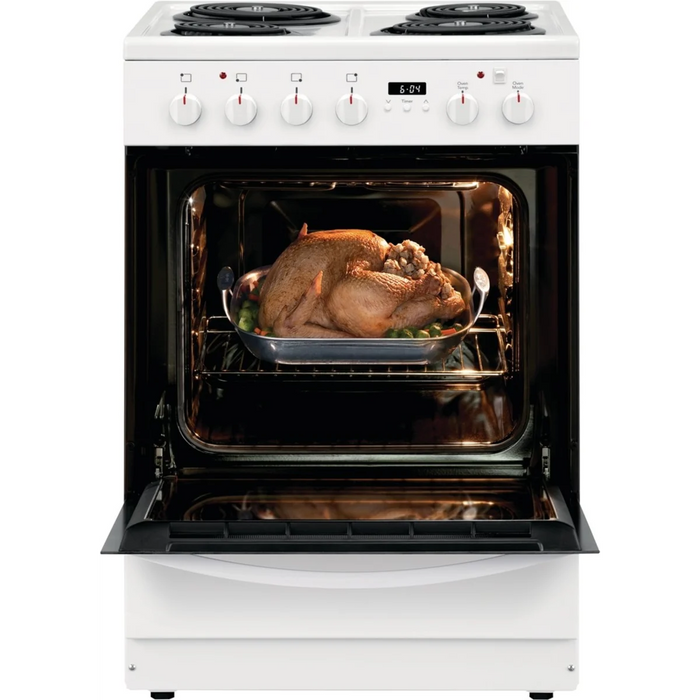

- This 24" electric range is compact in design, but not in capacity - oven can easily fit a 10 lb. turkey.
Additional Features
- Porcelain Cooktop Surface
SPECIFICATIONS:
| Certifications and Approvals |
| ADA Compliant |
Yes |
| UL Listed |
Yes |
| Cooktop |
| Cooking Surface Type |
Coil |
| Drip Bowl Type |
Porcelain |
| Cooktop Performance |
| Right Front Element Burner Size |
8" |
| Right Rear Element Burner Size |
6" |
| Left Front Element Burner Size |
6" |
| Left Rear Element Burner Size |
8" |
| Right Front Element Burner |
2400 Watts |
| Right Rear Element Burner |
1500 Watts |
| Left Front Element Burner |
1500 Watts |
| Left Rear Element Burner |
2400 Watts |
| Dimensions and Volume |
| Minimum Height |
35 7/8" |
| Depth With Door 90° Open |
41 1/2" |
| Oven Interior Height |
12 7/8" |
| Oven Interior Width |
16 3/8" |
| Oven Interior Depth |
16 3/50" |
| Oven Capacity |
1.9 Cu. Ft. |
| Display |
| Control Location |
Front |
| Drawer |
| Drawer Type |
Storage |
| Electrical Specifications |
| Amps @ 240 Volts |
31.3 Amps |
| Minimum Circuit Required |
40 Amps |
| Voltage Rating |
240 V |
| Exterior |
| Drawer Finish |
Color Coordinated |
| Knob Color |
Color Coordinated |
| Knob Material |
Plastic |
| General Specifications |
| Product Weight |
123.5 lbs |
| Prop 65 Label |
No |
| Warranty - Labor |
1 Year |
| Warranty - Parts |
1 Year |
| AB-1200 |
Information available at frigidaire.com/en/ab1200 |
| Installation |

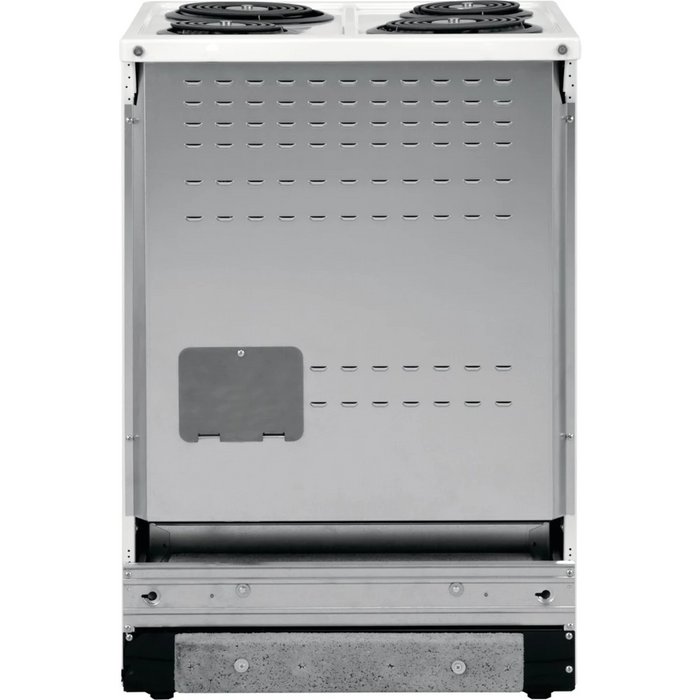

| Power Supply Connection Location |
Bottom Left |
| Oven |
| Bake Element |
1000 Watts |
| Bake Element Pass |
4 |
| Bake Element Type |
Hidden |
| Bake System |
Yes |
| Broil Element |
1650 Watts |
| Broil Element Pass |
4 |
| Broil System |
Yes |
| Number of Rack Positions |
3 |
| Oven Interior Color |
Midnight Black |
| Rack Position Type |
Nickel Ladder |
| Rack Type 1 |
Flat |
| Rack Type 1 Quantity |
2 |
| Window Type |
Extra Large Window |
