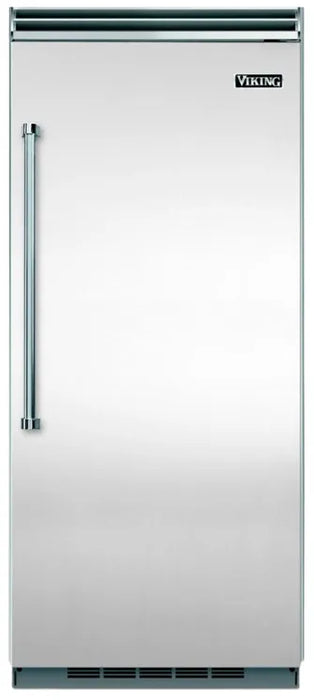

Viking® 5 Series 36"Stainless Steel Column Freezer VCFB5364RSS
Receive the product within 3-5 business days
The Viking® 5 Series 19.2 Cu. Ft. Stainless Steel Right Hinge All Freezer combines professional-grade performance with sleek aesthetics. It offers a 19.2 cu. ft. capacity, ProChill™ Temperature Management System, Multi-Channel Airflow, LED lighting, and an automatic ice maker for efficient food
Product Overview
ProChill™ Temperature Management System
Variable Speed DC Overdrive™ Compressor is one of the quietest, most technologically advanced compressors available
Electronic controls maintain even temperatures within one degree °F to keep food fresher longer
Multi-channel airflow system and Odor Eliminator™ Evaporator removes odors and excess humidity
Maintenance-free Super Clog Resistant™ Condenser provides expense free peace of mind
Adaptive defrost on All Freezer models control the timing of the defrost periods, instead of an electromechanical defrost timer
LED Lighting
All items are in clear view with bright energy efficient LED lighting from top and sidewalls
Ramp on theater lighting provides better visibility

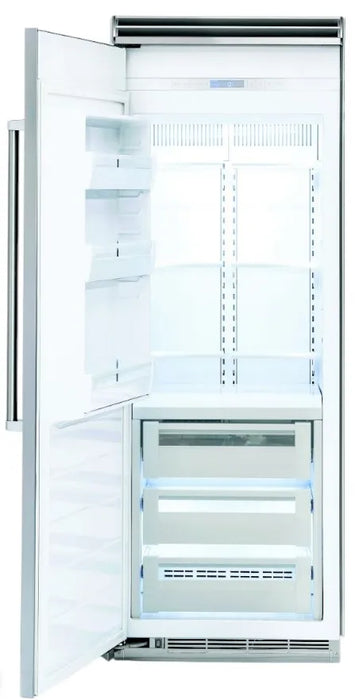

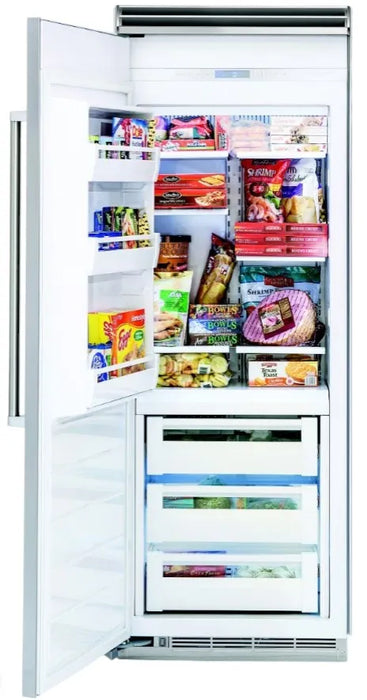

Functional Shelving and Storage

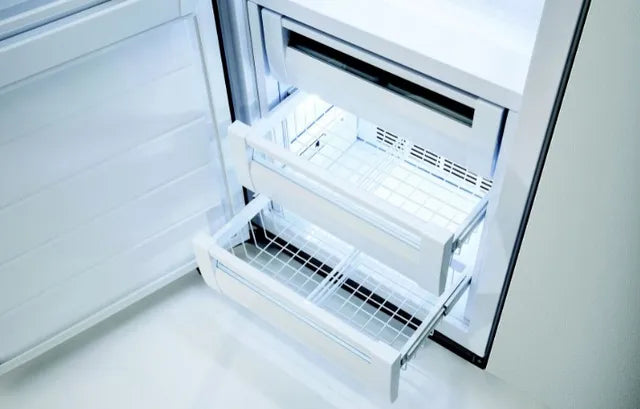

Adjustable full-width wire shelves along with one full-width metal shelf and two full-width slide-out wire baskets with tempered glass fronts allows for increased storage options
EXCLUSIVE adjustable metal door bins to securely store heavy items
Full-extension precision ball bearing slides on all baskets and drawers allow for drawers to easily glide open and close for access

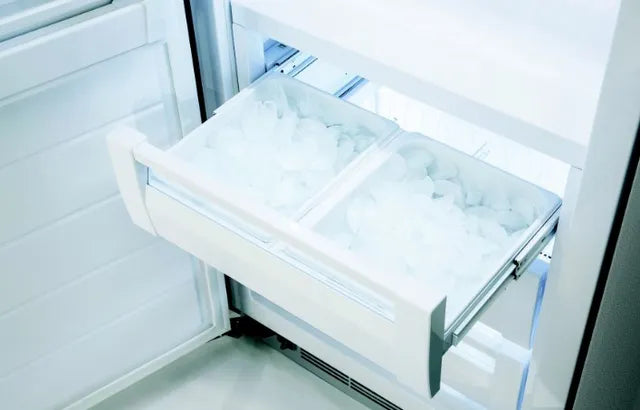

Automatic Ice Maker
Factory-installed automatic ice maker with full-width large-capacity ice drawer includes two separate ice pans for maximum ice production and storage
Design Options
Order as right or left hinge
SPECIFICATIONS:
General Specs
Product Weight (lbs.)
605
Width (in.)
36
Depth (in.)
26.5
Height (in.)
84.06
Defrost System
Automatic
Manufacturer Warranty
90 Day Full Cosmetic Part / 2 Years Full Covers Complete Unit / 6 Years Sealed Refrigeration System / 12 Year Limited Sealed Refrigeration System
Color
Stainless Steel
Installation Type
Built-In or Freestanding
Door Color
Stainless Steel
Depth Type
Standard Depth
Depth Less Door (in.)
22.19
Depth Excluding Handles (in.)
24
Depth Including Handles (in.)
26.5
Overall Height (in.)
84.05
Height Without Door/Hinge (Case) (in.)
82.75
Door Panel Type
Panel
Color/Finish Name
Stainless Steel
Door Swing Option
Right Hinge
ADA Compliant
No
ENERGY STAR Certified
No
Total Capacity (cu. ft.)
19.2
Voltage
115
Frequency
60
Amp
15
Freezer Features
Single Ice Maker, Temperature Control, Temperature Display
Additional Dimensions
Overall Depth From Rear
To Front Edge of the Side Trim
22.19" / 56.4 cm
To Front of Top Grille
24" / 61 cm
To Front of Handle Endcap
26.5" / 67.3 cm
Cutout Width
29.06" minimum to 29.75 maximun / 75.6 cm / 30" / 74.9 cm
Cutout Height
82.09" minimum to 84.06 / 213.5 cm maximum
Cutout Depth
24” / 61 cm minimum
