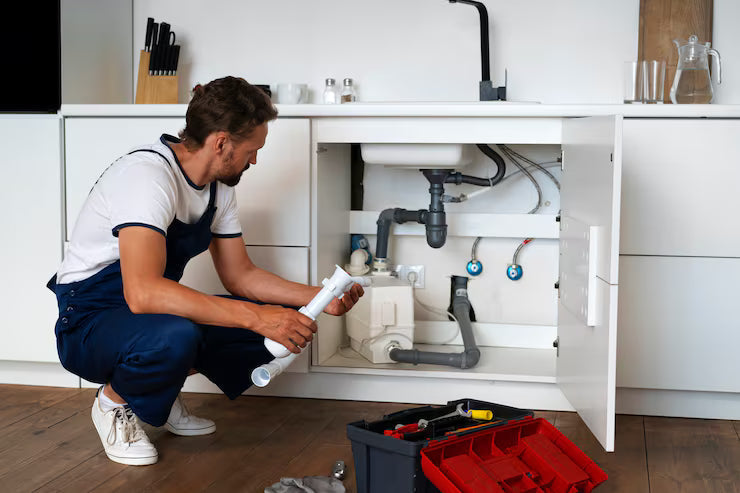

The Hidden Plumbing Plan Behind a High-Functioning Kitchen

A kitchen renovation is often planned around visible features. Homeowners compare cabinet finishes, countertop materials, faucet styles, lighting, and appliances before thinking about the pipes hidden behind the walls and beneath the floor.

However, even the most attractive kitchen can become frustrating when its plumbing is treated as an afterthought. A poorly positioned drain can limit sink placement. An undersized cabinet may leave too little room for a garbage disposal. Aging supply lines can leak behind newly installed cabinetry, while an improperly planned drain or vent can cause slow drainage and recurring odors.

Good kitchen design therefore depends on more than appearance. It requires coordination between the visible fixtures and the water, drainage, venting, and sewer connections that allow those fixtures to function.

From the farmhouse sink at the countertop to the sewer line outside the home, every part of the system should be considered before construction begins.

Why Kitchen Plumbing Should Be Planned Before Choosing the Finishes

Finishes may define the appearance of a renovated kitchen, but plumbing determines where many of its most important features can be placed.

The location of the sink affects the countertop, base cabinets, dishwasher, garbage disposal, water filter, and nearby storage. Moving the sink after cabinets have been ordered may require cabinet modifications, countertop changes, or additional plumbing work. These adjustments can increase costs and disrupt the construction schedule.

Early plumbing planning allows the homeowner, designer, cabinet installer, and plumber to work from the same layout. Before materials are purchased, the team should confirm the proposed locations of water lines, drains, shutoff valves, vents, and appliance connections.

This process is particularly important when installing a large apron-front or farmhouse sink. These sinks are often deeper and heavier than standard drop-in models. They may require a specially designed cabinet, added structural support, and changes to the drain location.

Planning the plumbing first does not mean sacrificing design. It helps ensure that the chosen design can be installed correctly without unnecessary compromises.

Assessing Existing Water, Drain, and Sewer Connections

Before deciding what to replace or relocate, homeowners should understand the condition and location of the existing plumbing system.

A plumbing assessment may include the hot and cold water lines, drain connections, shutoff valves, visible pipe materials, water pressure, and signs of leakage or corrosion. The plumber may also trace how the kitchen fixture drain joins the building drain and, farther downstream, the building sewer.

This step is especially important in older homes. Existing pipes may have been installed decades ago, modified during previous renovations, or placed in locations that do not support the new layout. Some pipes may still function but be approaching the end of their practical service life.

Warning signs can include discolored water, low pressure, recurring clogs, damp cabinet interiors, corrosion around fittings, or slow drainage. These symptoms do not always require a complete replacement, but they should be investigated before new cabinets and flooring cover the area.

The assessment should also consider whether the existing system can support additional fixtures. A renovation may add a pot filler, second sink, refrigerator water line, dishwasher, instant hot-water dispenser, or filtration system. Each feature creates new supply, drainage, or access requirements.

Identifying these needs before demolition and installation helps prevent unexpected changes after cabinets, countertops, or flooring are in place.

Matching Sink Dimensions to the Cabinet and Plumbing Space

A sink should be selected in relation to both the countertop design and the space available beneath it.

Farmhouse sinks require particularly careful measurements. Unlike many standard sinks, an apron-front model extends through the face of the cabinet. The cabinet may need to be manufactured or modified specifically for the sink’s width, depth, height, and weight.

The depth of the sink affects more than washing capacity. A deeper basin lowers the drain opening, leaving less vertical space for the P-trap—the curved fitting that retains a water seal—the garbage disposal, and the wall connection. If the drainpipe in the wall is too high, these components may not fit properly.

Homeowners should also consider how much usable cabinet space will remain. A deep sink, garbage disposal, filtration system, and pull-out organizer may compete for the same area. Where adopted, Sections 606.2 and 606.3 of the 2024 International Plumbing Code require shutoff valves for fixture and appliance supplies and access to those valves, so they should not be buried behind fixed storage.

Measurements should be verified using the specifications for the exact sink model rather than relying only on general cabinet dimensions. Small differences between products can affect whether the sink fits correctly.

Coordinating the sink, cabinet, countertop, and drain height before installation avoids improvised pipe arrangements and preserves useful storage.

When Moving the Kitchen Sink Is Worth the Added Work

Relocating a kitchen sink can improve the way a room functions, but the decision should be based on more than appearance.

A sink may be moved to create a better work triangle, open a view toward a window, make room for a larger range, or support a new kitchen island. In some renovations, moving the sink allows the entire room to feel more open and efficient.

The complexity depends on the new location and the home’s construction. Extending water lines may be straightforward, but drainage and venting often require more planning. The International Plumbing Code and Uniform Plumbing Code are model codes that become enforceable only when adopted by a state or local jurisdiction, sometimes with amendments. The locally adopted code controls drain slope, venting, materials, and inspections.

Moving a sink along the same wall may be less disruptive than relocating it to an island or the opposite side of the room. Island sinks can require piping beneath the floor and a code-compliant venting arrangement. Section 916.1 of the 2024 International Plumbing Code addresses island fixture venting for residential kitchen sinks, but the adopted local code may use a different method or edition. Concrete slabs can also make routing more difficult than an accessible basement or crawl space.

Homeowners should compare the functional benefit with the construction involved. A relocation may be worthwhile when it substantially improves the layout, while a small move made only for appearance may offer limited value.

A qualified plumber should evaluate the proposed location before the cabinet plan is finalized. Because model codes take effect through state or local adoption, the local building department should confirm the governing code, permits, inspections, and contractor qualifications.

Planning Connections for Faucets, Sprayers, and Water Filters

Modern kitchen sinks often include more than a basic faucet. A completed installation may involve a pull-down sprayer, filtered-water faucet, soap dispenser, instant hot-water unit, or touchless control system.

Each component needs space above and below the countertop. Faucet holes must be positioned correctly, and the countertop fabricator needs to know the required number and diameter before cutting the material.

Below the sink, supply hoses and filter cartridges should be arranged so they do not interfere with the garbage disposal, drain, cabinet drawers, or cleaning supplies. Filtration systems also need enough clearance for cartridge replacement and access to connections.

The faucet’s size should be considered in relation to the sink. A faucet that is too low may not provide enough room for filling large pots, while one that is too tall may cause excessive splashing in a shallow basin. The reach of the spout should direct water toward the center of the sink rather than the edge.

Shutoff valves should remain visible and reachable so water can be stopped during maintenance or a leak without interrupting service to the entire house.

Planning these details before countertop cutting and final installation creates a cleaner setup and makes later service easier.

Coordinating the Dishwasher and Garbage Disposal Setup

The dishwasher, sink, and garbage disposal operate as a connected system, so they should not be planned independently.

Dishwashers require a water supply, electrical connection, and drainage route. Placement next to the sink is often practical because coordinating with a Plumbing Company can help keep the connections within one accessible area.

The drain hose must be routed to reduce backflow and siphoning. A high loop secures the hose near the countertop; an air gap is a separate fitting above the sink or counter. Section P2717.2 of the 2024 International Residential Code addresses elevated waste-line routing, while Section 807.3 of the 2024 Uniform Plumbing Code requires an approved dishwasher air-gap fitting. Whirlpool directs installers to follow local code and model instructions for high-loop or air-gap routing.

A garbage disposal adds another consideration. The unit occupies space directly beneath the sink and lowers the point where water enters the drain system. A large disposal combined with a deep farmhouse sink may leave limited room for the trap and wall connection.

A disposal also needs a compatible electrical connection and control. NFPA identifies the National Electrical Code as the benchmark for electrical installation, but state or local adoption determines the governing edition. Product-specific wiring and controls must follow the disposal and switch instructions. Moen’s official hardwiring guidance requires a grounded connection and a marked-off wall switch for covered disposals. An electrician should confirm the installation.

Not every kitchen needs a garbage disposal. Preserving storage or simplifying maintenance may be more important, and homeowners with septic systems should weigh the added solids. The U.S. Environmental Protection Agency advises limiting disposal use because food waste can increase sludge and the frequency of septic-tank pumping.

Preventing Slow Drains Through Proper Sizing, Slope, and Venting

A kitchen drain must carry wastewater, food residue, grease, and detergent away from the sink. When the drainage system is poorly designed or partially blocked, water may drain slowly, produce odors, or back up into the basin.

Pipe size, slope, and venting work together. Section 704.1 of the 2024 International Plumbing Code requires horizontal drainage piping to follow specified uniform slopes, while Chapter 9 addresses venting. The adopted local code and the actual pipe size determine the required installation. Venting balances air pressure so wastewater can move without repeatedly siphoning the trap seal.

The P-trap retains water that blocks sewer gases from entering the kitchen. An improper trap, failed seal, or inadequate vent can allow odors, slow drainage, or gurgling.

Drain components should not be forced into place when the sink outlet and wall connection do not align. Excessive bends, flexible accordion-style pieces, or poorly positioned fittings can collect debris, restrict cleaning, and conflict with approved materials or installation methods.

Daily use also affects drainage. The U.S. Environmental Protection Agency advises keeping fats, oils, grease, coffee grounds, and other solids out of drains, including drains served by a garbage disposal.

A properly designed and maintained drain should work quietly and consistently without frequent chemical treatments or emergency clearing.

Protecting New Cabinets and Flooring From Hidden Water Leaks

Water damage can spread before a leak becomes obvious. A small drip beneath the sink may soak into the cabinet base, flooring, drywall, or subfloor over time.

New kitchen materials can be particularly vulnerable because cabinetry and flooring are often installed tightly around plumbing connections. Once water enters enclosed areas, it may remain hidden until swelling, staining, odors, or mold-like growth becomes visible.

After installation, each connection should be inspected and tested under normal and full-flow conditions. Where adopted, Section 312 of the 2024 International Plumbing Code requires applicable plumbing-system tests and notice to the code official. Required testing should be completed before concealed areas are closed.

Shutoff valves are another safeguard. Old or difficult-to-operate valves may not close fully during an emergency. Replacing worn valves during renovation can simplify future maintenance and limit damage if a fixture or appliance leaks.

Homeowners may also consider leak-detection devices. Basic sensors can sound an alarm when they detect water beneath the sink or near an appliance. More advanced systems may monitor water use or automatically close the main supply when unusual flow is detected.

Cabinet liners can contain minor drips, but they are not a substitute for properly installed, accessible, and tested plumbing.

Recognizing When Older Kitchen Pipes Need Repair or Replacement

A renovation provides an opportunity to inspect pipes that may otherwise remain hidden for years.

Visible corrosion, mineral buildup, frequent leaks, poor water pressure, recurring clogs, or deteriorated fittings may indicate that repairs are needed. The age and material of the pipes can also influence the decision.

Replacement does not always mean repiping the entire home. In some cases, only the exposed kitchen lines or a damaged drain section need attention. In others, repeated problems may suggest a broader issue that should be evaluated before new finishes are installed.

The sewer line can also affect kitchen performance. A clog limited to one sink often points to a nearby branch drain, while backups or gurgling in several fixtures may indicate a blockage, root intrusion, damaged pipe, or other defect in the building drain or sewer. Sewage odors can also come from a dry or defective trap, so symptoms should be diagnosed rather than assumed.

A professional inspection can distinguish a localized kitchen problem from a larger drainage or sewer concern. Depending on the symptoms and pipe condition, the work may involve cleaning, leak or pressure testing, or a camera inspection that records the inside of the building drain or sewer line.

Addressing deteriorated or obstructed piping during renovation is usually less disruptive than removing newly installed cabinets or flooring later.

Coordinating Designers, Installers, and Plumbers Before Construction

Many kitchen problems occur because each trade works from different measurements, product specifications, or assumptions.

The designer may assume the sink can be centered beneath a window. The cabinet installer may expect the drain to fit within a narrow opening. The countertop fabricator may cut holes before the faucet model is confirmed. The plumber may then arrive and discover that the connections do not align with the approved layout.

A shared, confirmed plan reduces these conflicts.

Before materials are ordered, the team should confirm the sink model, cabinet dimensions, faucet specifications, appliance locations, drain height, water-line locations, service clearances, and permit responsibilities. Any decision to move the sink or add a fixture should be communicated to every affected trade.

Responsibility for each installation step should also be assigned. A countertop installer may mount the sink without connecting plumbing, and an appliance installer may position the dishwasher without completing permitted plumbing or electrical work. Because licensing and permit rules are jurisdiction-specific, the local building department should confirm who may obtain permits and perform or supervise the work.

Clear responsibility prevents scheduling gaps and reduces the chance that required work or inspections will be missed.

A high-functioning kitchen depends on coordinated systems: cabinets support the sink, the countertop accommodates fixtures, water lines provide reliable flow, and the drainage system carries wastewater to the building sewer.

When hidden plumbing is planned as carefully as the visible finishes, the kitchen is easier to use, service, and protect for years to come.
